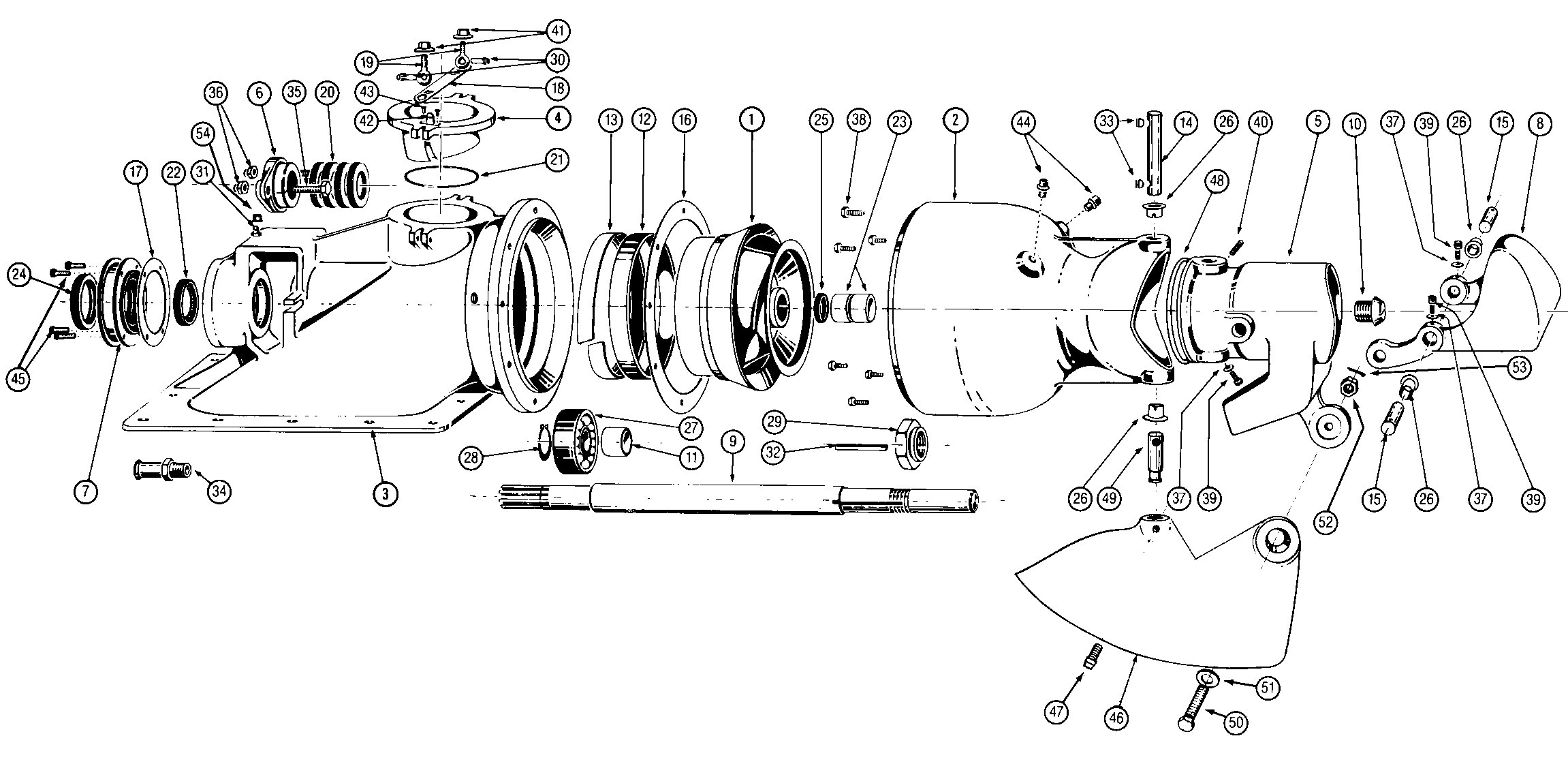

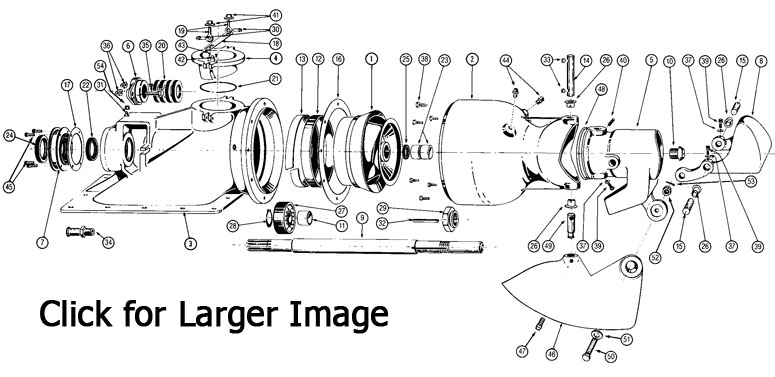

Berkeley Jet Drive Model 12JC

Sym. Qty. Req.
Description Part No. Sym. Qty. Req. Description Part No.
1 1 Aluminum Impeller 150-L02507 28 1 Snap Ring 150-S14478
1 Commercial Stainless Steel Impeller 150-L05021 29 1 Impeller Nut 150-S12005
2 1 Bowl 150-H02484 30 2 Groove Pin 150-S14479
3 1 Suction Piece 150-H01727 31 1 Grease Fitting 150-S14480
4 1 Hand Hole Cover  150-M04128 32 1 Impeller Key 150-S14482
5 1 Nozzle 150-L04501 33 2 Woodruff Key 150-S14481
6 1 Packing Gland 150-S12727 34 1 Barbed Connector 150-S14821
7 1 Bearing Cap 150-S15338 35 2 Packing Gland Bolt 150-S23574
8 1 Reverse Bucket 150-L04251 36 2 Packing Gland Nut 150-S26573
9 1 Pump Shaft  150-M05356 37 11 5/16 Lock Washer 150-S23088
10 1 Bowl End Cap 150-S09850 38 8 Bowl Cap Screws 150-S23621
11 1 Shaft Sleeve 150-S14379 39 3 Nozzle & Rev. Bucket Cap Screw 150-S25959
12 1 Wear Ring 150-S10125 40 1 Set Screw 150-S23665
13 1 Insulator 150-S10068 41 2 5/16 Hand Hole Nuts 150-S23680
14 1 Tiller Shaft 150-S15396 42 1 Hand Hole Wrench Fastener 150-S14493
15 3 Rev. Bucket Shaft 150-S10825 43 2 Fastener Screw 150-S25599
16 1 Bowl Gasket 150-S09017 44 2 Oil Pipe Plugs 150-S13883
17 1 Bearing Cap Gasket 150-S09018 45 4 Bearing Cap Screws 150-S26151
18 1 Wrench 150-S11543 46 1 Rudder Kit Plastic 150-B-07486
19 2 Rod End 150-S10907 1 Rudder Kit Aluminum 150-B-06906
20 4 Packing Rings 150-S08287 47 1 Set Screw 150-S23665
21 1 Hand Hold Cover O-Ring 150-S13734 48 1 Nozzle O-ring Pre-1994 150-S17737
22 1 Suction Piece Seal 150-S14380 1 Nozzle O-ring 1994 and Later 151-09340
23 2 Bowl Bearings 150-S14483 49 1 Rudder Pin 150-S16753
24 1 Bearing Cap Seal 150-S14475 50 1 Rudder Bolt 150-S32394
25 1 Bowl Seal 150-S14476 51 1 Washer 150-S23063
26 4 Nyliner Bearings 150-S14477 52 1 Slotted Nut 150-S32400
27 1 Thrust Bearing 150-S14063 53 1 Cotter Pin 150-S26619
        54 1 Grease Fitting Cap 150-S16549

DESCRIPTION:
The Model 12JC Jet-Drive is constructed of a Super-tough, high-strength, aluminum alloy, castings the finest and most serviceable material available. Precision machined and hard-anodized, assembled with stainless steel fasteners, assures maximum performance with a minimum of maintenance. Dissimilar metals are protected from each other by inert insulators to retard corrosion. Using Berkeley’s unique single stage, mixed flow, impeller, this unit ;gives maximum thrust per horsepower. Developed over a period of many years, and field tested, assures the user of the Model 1210 Jet-Drive many years of trouble-free boating.

APPLICATION: Ideally suited for vee and modified vee hull boats, measuring 14 to 24 feet in overall length, with a gross weight of not over 5,000 pounds per unit, including passengers and gear.

FEATURES: Only one rotating element, the shaft and impeller assembly. Specially designed intake adapter to assure pump alignment and boat bottoms matching for efficient performance. Two transom housings to accommodate transom angles of 0° to 9° and 9° to 18°. A single stage, enclosed, mixed flow, impeller available in aluminum or stainless steel, machined to match horsepower involved. replaceable, insulated impeller wear ring machined to close tolerances for minimum bypass and high pump efficiency. Strong self-cleaning finger-type intake grate. Readily accessible and serviceable stuffing box-type shaft seal. Heavy duty, grease lubricated, ball-type thrust bearing, isolated and sealed for protection from accidental water damage. Easily accessible hand hole for impeller clean out in the unlikely event of clogging. Cover securely held in place by swing bolts and special wrench, which may be used for stuffing box adjustment. Long life, oil lubricated, sleeve-type tail bearing, sealed from the water. Smooth working steering nozzle and reverse bucket for effortless steering in forward and reverse. O-ring seal assures minimum spray. Long blade rudder for positive boat handling at low speeds with no appreciable loss in performance at higher speeds.

POWER REQUIREMENTS: Approximately 10 to 27 pounds gross boat weight requires 1 HP. Higher or lower speeds will be obtained as gross weight varies. Weight distribution, hull length and design are other factors affecting total boat performance. The standard aluminum alloy impeller is used with engines up to 400 HP; over 400 HP, a stainless steel impeller is recommended.

OPTIONAL EQUIPMENT: Hand hole extension, stainless steel impeller, shift-throttle controls, instrument panels, gauge clusters and wiring harnesses.

DIMENSIONS / WEIGHT: Net weight 125 pounds total unit. Dimensions will vary with different intake and transom adapters and are for estimating only. Refer to catalog installation drawings for complete dimensions.
