Golden Eagle Jet Drives

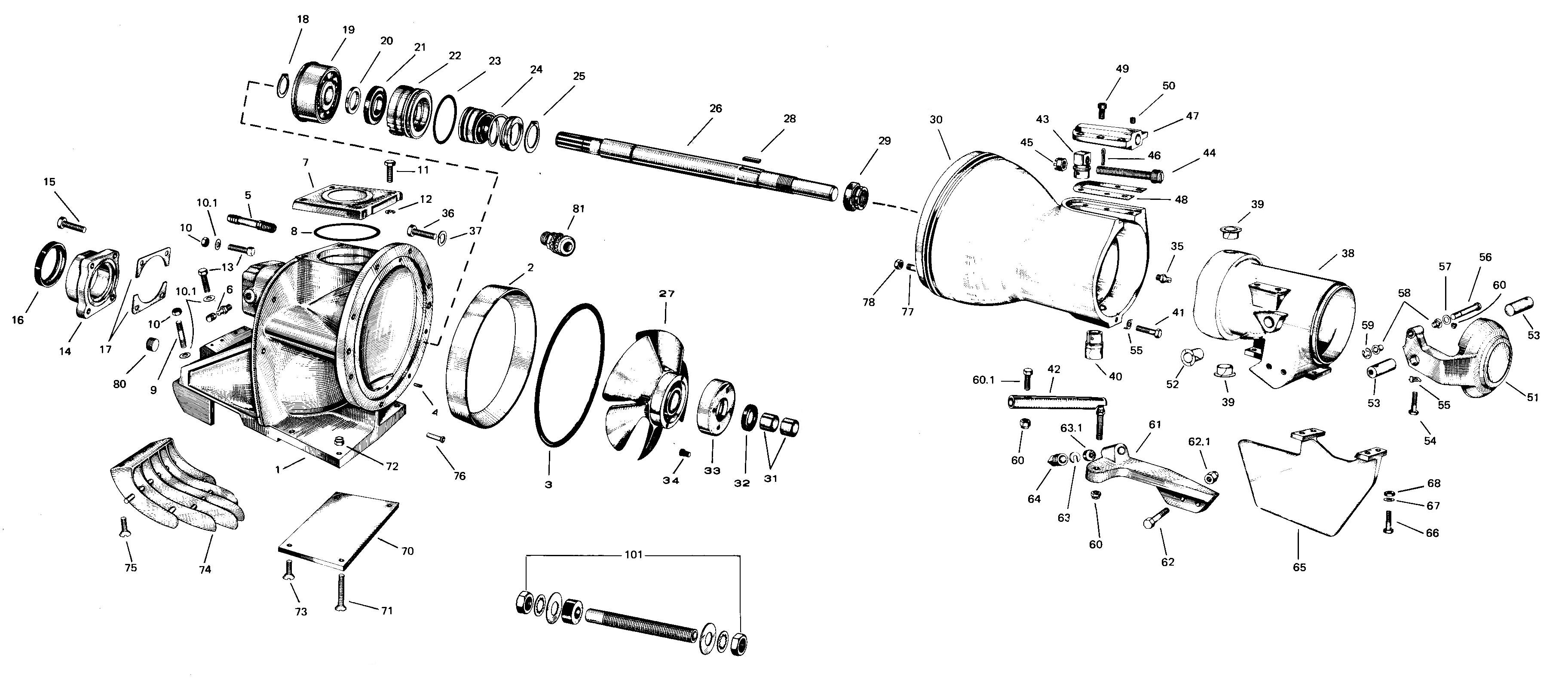

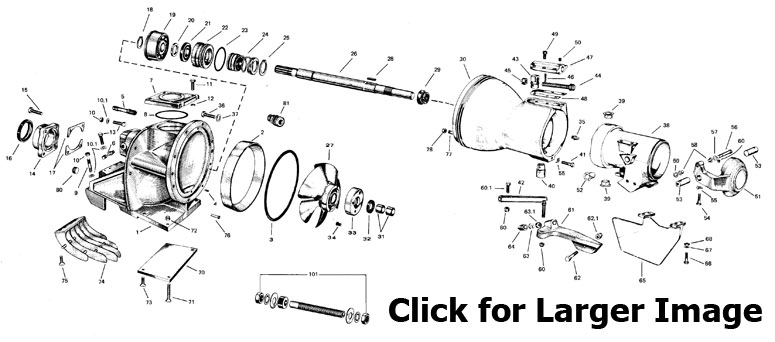

Golden Eagle Jet Drive Replacement Parts

Sym. Qty. Req.
Description Part No.
1 1 Suction Piece No. 5737 160-04-2282-01
2 1 Wear Plate No. 5533 Ni-resist 160-08-2243-13
3 1 Wear Plate O-ring 160-47-0178-01
4 2 Dowel Pin 160-14-1773-07
5 1 Cooling Water Tube 160-31-0804-01
6 1 Grease Fitting 160-23-0562-03
7 1 Inspection Cap No. 5764 160-51-0494-01
8 1 Inspection Cap O-ring 160-47-0248-07
9 3 Suction Piece Stud 160-14-0576-08
10 7 Nut 160-14-0727-06
10.1 11 Washer 160-14-0740-41
11 4 Inspection Cap Bolt 160-14-0743-06
12 4 Snap Ring 160-14-1594-04
13 8 Mounting Bolt 160-14-1296-21
14 1 Bearing Cap No. 4910 160-08-2399-07
15 4 Bearing Cap Bolt 160-14-1295-14
16 1 Bearing Cap Lip Seal 160-10-1320-09
17   Impeller Adjustment Shim .031 160-14-0829-03
17.1   Impeller Adjustment Shim .015 160-14-1903-00
18 1 Retaining Ring 160-14-0767-07
19 1 Thrust Bearing 160-08-2202-12
20 1 Thrust Bearing Washer 160-14-1762-00
21 1 Lip Seal 160-10-1345-00
22 1 Seal Housing No. 5765 160-10-1387-09
23 2 Seal Housing O-ring 160-47-0233-04
24 1 Mechanical Seal 160-10-1043-05
25 1 Retaining Ring 160-14-0801-05
26 1 Impeller Shaft 160-07-5756-08
27.1 1 Impeller B Cut No. 4906 160-05-3224-09
27.2 1 Impeller C Cut No. 4906 160-05-3225-08
27.3 1 Impeller D Cut No. 4906 160-05-3226-07
27.4 1 Impeller E Cut No. 4906 160-05-3227-06
27.5 1 Impeller F Cut No. 4906 160-05-3228-05
27.6 1 Impeller G Cut No. 4906 160-05-3229-04
27.7 1 Impeller H Cut No. 4906 160-05-3230-01
27.8 1 Impeller K Cut No. 5657 160-05-3346-02
28 1 Impeller Key 160-23-1403-04
29 1 Impeller Nut 160-23-1491-07
30 1 Bowl No. 4905 160-04-2202-08
31 2 Bowl Bearing 160-23-1423-00
32 1 Bowl Bearing Lip Seal 160-10-1260-19
35 1 Grease Fitting 160-23-0560-13
36 6 Bowl Bolt 160-14-0731-00
37 8 Lock Washer 160-14-0722-01
38 1 Deflector No. 4997 - No Longer Available 160-52-0374-05
39 2 Nyliner Bearing 160-08-2245-03
40 1 Deflector Bottom Pivot Pin 160-51-0203-03
41 1 Retaining Bolt 160-14-1269-16
42 1 Tiller Arm Extension 160-51-0500-03
43 1 Trim Pivot Assembly 160-51-0205-01
44 1 Trim Screw 160-14-0809-07
45 1 Castle Nut 160-14-0803-03
46 1 Cotter Pin 160-14-0712-03
47 1 Trim Cap 160-51-0208-08
48 1 Trim Cap Gasket 160-13-0370-07
49 6 Trim Cap Bolt 160-14-1772-08
50 1 Trim Set Screw 160-14-0717-08
51 1 Reverse Gate No. 5766 160-52-0372-07
52 2 Nyliner Bearing 160-08-2196-02
53 2 Reverse Gate Pivot Pin 160-52-0280-08
54 2 Retaining Bolt 160-14-1268-09
55 3 Lock Washer 160-14-1895-00
56 1 Cable Pin 160-52-0293-03
57 1 Cable Pin Fit. Washer 160-23-1503-03
58 2 Nyliner Bearing 160-08-2298-09
59 1 Cable Pin Retaining Ring 160-14-1504-11
60 2 Locknut 160-14-0392-00
60.1 1 Tiller Arm Ext. Bolt 160-14-0580-02
61 1 Tiller Arm No. 5767 160-52-0371-08
62 2 Tiller Arm Bolt 160-14-1297-12
62.1 2 Lock Nut 160-14-1922-07
63 1 S.S. C-Wsh Cablelock 33 160-23-1502-04
63.1 1 330 Packing - No Longer Available 160-23-2223-00
64 1 Cable Lock Plug 160-22-1995-09
65 1 Rudder No. 4998 160-52-0290-06
66 4 Rudder Bolt 160-14-1268-09
67 4 Lock Washer 160-14-0721-02
68 4 Nut 160-14-0725-08
69   Bottom Pivot Washer 160-14-1856-07
70 1 Trim Plate 160-51-0497-08
71 2 Machine Screw 160-14-1556-00
72 2 Locknut 160-14-0263-06
73 2 Machine Screw 160-14-1404-04
74 1 Grill Insert 160-51-0496-09
75 4 Grill Insert Machine Screw 160-14-1404-04
76 2 Nytite Seal 160-14-1893-02
77 2 Bowl Stud 160-14-0341-02
78 2 Nut 160-14-0727-06
80 1 Aluminum Plug 160-31-0672-00
81 1 Cable Gland Assembly 1/2" NPT 160-23-1408-09
101 1 Steering Tube 160-51-0431-07
