Rack and Pinion Steering System - Non Reversible

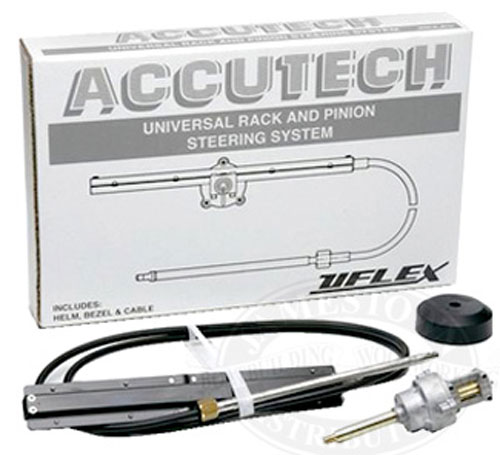

Uflex Non-Reversible Rack and Pinion Steering System Packaged in a Box

A convenient kit form, especially suitable as replacement steering, that includes helm, bezel and cable. The cable is available in 1-ft increments from 8 to 20 feet (specify cable length when ordering). Recommended for outboard applications or non power assisted sterndrives where there is limited space behind the dash, the Accutech features a patented spring clutch of the G88NR helm eliminates continuous loads while not actively changing direction. The M86 cable included with the Accutech has an armor wrapped stainless steel core for maximum efficiency and minimal lost motion. Click here for how to measure for replacement cable.

This kit includes:

  • M86 - preassembled helm with steering cable
  • G86NR - shaft assembly
  • X34 - 90° bezel (diameter is 5 1/8")

Features and Technical Specifications:

  • All stainless steel cable output ends
  • Made exclusively in corrosion resistant materials
  • Optional 90° or 20° installation
  • Standard 3/4”tapered shaft
  • Lock-to-lock steering wheel turns: 3,5
  • Stroke: 8.2” (210 mm)
  • Maximum allowable steering wheel diameter: 16.5” (420 mm)
  • Minimum steering cable bend radius: 7,9” (200 mm)
  • G86 steering systems are not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat
  • Exceeds EN 28848 safety standards
  • Exceeds ABYC P17 safety standards


MSRP: $478.99
Your Price: $406.99
You Save: 15% off MSRP!

NOTE: This Item is currently out of stock. Expected Ship Date: (Contact Us via email for current availability)
You may place an order for this part but it will not ship until available. Any other items on your order will also not ship until this part is available. Please call us for more information.
I Understand this item is out of stock and my order will not ship until it is available. (Please Check Box)
