American Turbine Model Dominator Steering

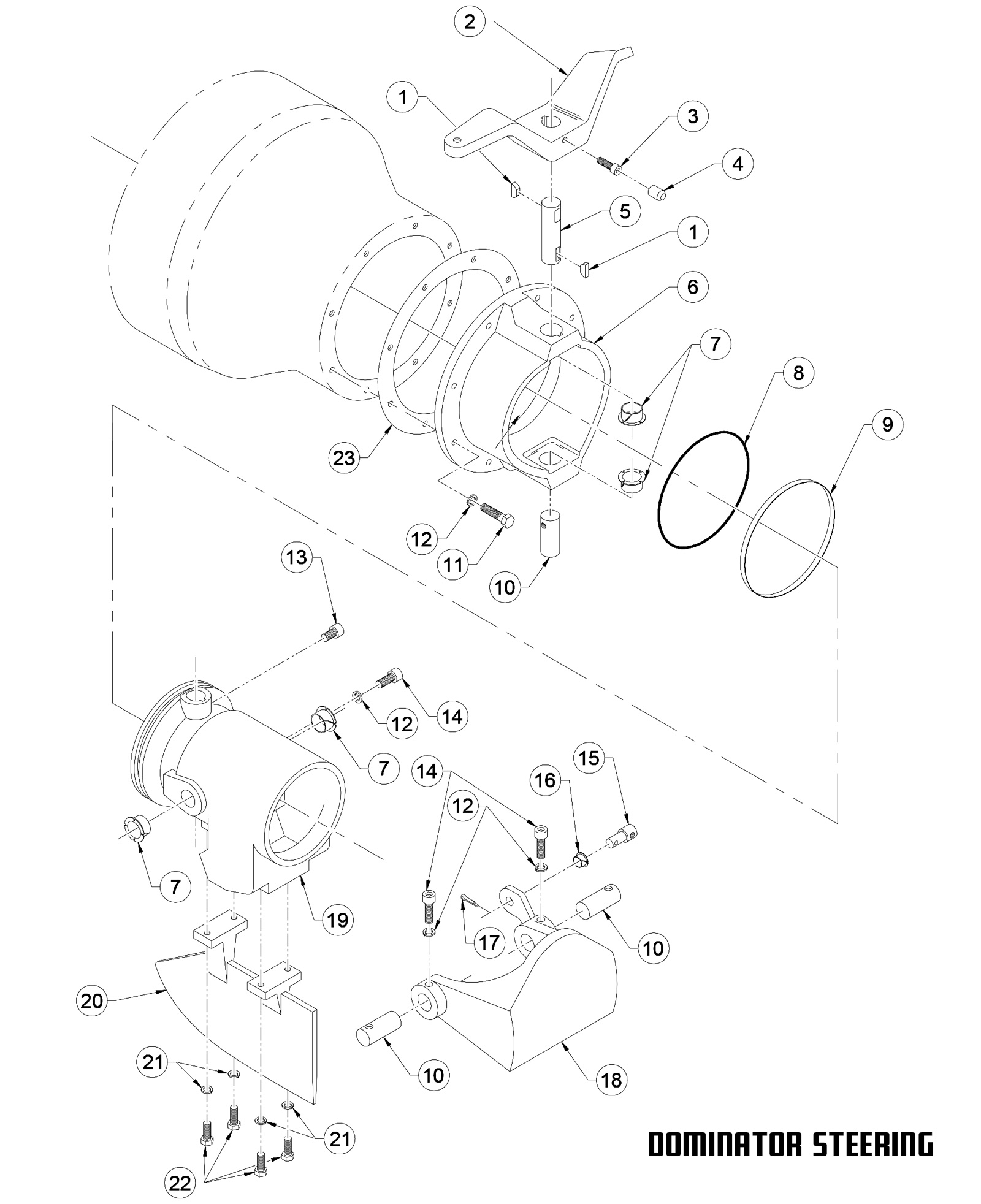

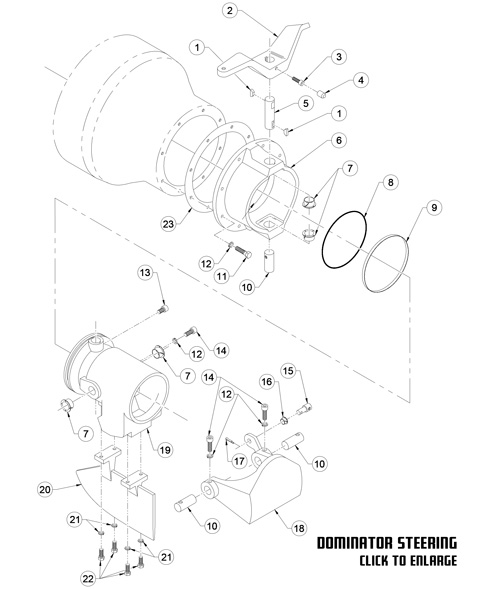

Dominator Steering
PART #RA1703
|
SYM.
|
DESCRIPTION |
QTY.
|
PART NO. |
|---|---|---|---|
|
1
|
WOODRUFF KEY #9 |
2
|
152-R5507 |
|
2
|
TILLER ARM |
1
|
152-R3003 |
|
3
|
SHCS, 5/16-18 X 3/4 |
1
|
152-F05 18 06 SH |
|
4
|
VINYL CAP |
1
|
152-M5001 |
|
5
|
UPPER TILLER PIN |
1
|
152-BN2410 |
|
6
|
NOZZLE HOUSING |
1
|
152-R1007 |
|
7
|
NYLINER BEARING 3/4 X 3/4 |
4
|
152-B2007 |
|
8
|
O-RING |
1
|
152-O1505 |
|
9
|
RUBBER BAND (OPTIONAL) |
1
|
** |
|
10
|
LOWER NOZZLE PIN |
3
|
152-BN2510 |
|
11
|
HHCS, 5/16-18 X 1-1/4 |
8
|
152-F05 18 10 HH |
|
12
|
LOCKWASHER, 5/16 |
11
|
152-F05 LW |
|
13
|
SHCS, 5/16-18 X 1/2 |
1
|
152-F05 18 04 SH |
|
14
|
SHCS, 5/16-18 X 1 |
3
|
152-F05 18 08 SH |
|
15
|
PIVOT, REVERSE CABLE |
1
|
152-R5005 |
|
16
|
NYLINER, 3/8 |
1
|
152-B2105 |
|
17
|
COTTER PIN, 1/8 X 3/4 |
1
|
152-F02 06 CP |
|
18
|
REVERSE BUCKET |
1
|
152-R2103 |
|
19
|
NOZZLE |
1
|
152-R1703 |
|
20
|
RUDDER |
1
|
152-R2505 |
|
21
|
LOCK WASHER, 1/4 |
4
|
152-F04 LW |
|
22
|
HHCS, 1/4-20 X 3/4 |
4
|
152-F04 20 06 HH |
|
23
|
NOZZLE HOUSING GASKET |
1
|
152-G2507 |
