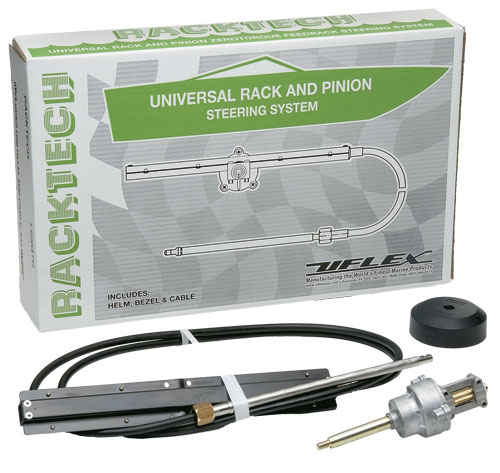

Uflex Rack and Pinion Steering System Packaged in a Box
A convenient kit form, especially suitable as replacement steering, that
includes helm, bezel and cable. The cable is available in 1-ft increments from 8
to 20 feet (specify cable length when ordering). The wheel is not
included.
This kit includes:
- M86 - preassembled helm with steering cable
- G86 - shaft assembly
- X34 - 90° bezel
Features
and Technical Specifications:
- All stainless steel cable output ends
- Made exclusively in corrosion resistant materials
- Optional 90° or 20° installation
- Standard 3/4”tapered shaft
- Lock-to-lock steering wheel turns: 3,5
- Stroke: 8.2” (210 mm)
- Maximum allowable steering wheel diameter: 16.5” (420 mm)
- Minimum steering cable bend radius: 7,9” (200 mm)
- G86 steering systems are not to be used on boats equipped with engines
that exceed the maximum horsepower rating of the boat
- Exceeds EN 28848 safety standards
- Exceeds ABYC P17 safety standards
